Brand Name : | RONGQI |
Model Number : | LM2-100*3000 |
Certification : | CE |
Price : | NG |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 20 sets per month |
Delivery Time : | 25 working days |

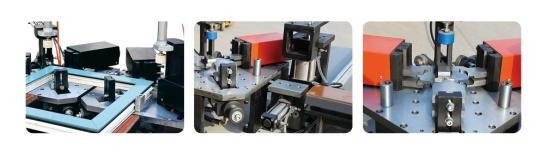

Aluminium Profile Window Double-head Corner Combing Machine
Features:
♦ Used for 90 corner crimping.
♦ Special crimping technology to keep synchronous crimping.
♦Adopt high quality gide railing system in the movable machine head.
♦Two corner crimping at one time.
♦Adjustable crimping knife in up/down,front/back direction.
Technical Parameters:
Power supply | 380V 50Hz |
Cutting motor powe | 2.2Kw |
Operation air pressure | 0.6-0.8Mpa |
Rated pressure | 15MPa |
Capability of oil box | 25L |
Max processing frame size | 3000mm |
Profile width | 93mm |
Connection seam error | ≤0.15mm |
Contour dimension | 3900mm×91000mm×1300mm |
Weight | About 1500kg |
![]() |
