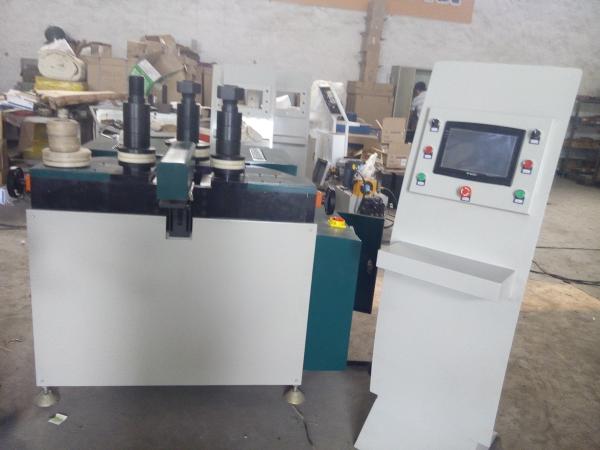

Aluminum Profile Bending Machine

Product Categories

Jinan Rongqi Intelligent Technology Co.,Ltd.

Contact Now

Ask Lasest Price
Brand Name :	RONGQI
Model Number :	LWY-200
Certification :	CE
Price :	NG
Payment Terms :	Western Union, MoneyGram, L/C, T/T
Supply Ability :	20 sets per month
Delivery Time :	15 work days

Add to Cart

Aluminum Profile Bending Machine for Round

Equipment Features:

uAdopt four axis positioning system in domestic initiative, forming a closed space in the deformation area, max reduce the twist of profiles.

uImported CNC system, to precise calculate the size of arc. The error≤0.5 cm

u Hydraulic system adopt to advanced CNC technology and hydraulic control system, the precision≤0.02 mm

uDevelop low pressure self-test rebound system, better remove the rebound

uCan easy operation for C type, U type, Oval, Circle, etc.

Main Technical Parameter:

Input Power	3kw
Power Supply	380 50Hz
Air Pressure	0.4—0.8Mpa
Oil Pressure	20T(200Mpa)
Roller Axis Speed	1—8r/min
Min Arc Radius	170mm
Max Roller Die Diameter	200mm
Roller Axis Diameter	80mm
Fixed Wheel Center Distance	330—750mm
Upperwheel Positioning Accuracy	0.02mm
Max Upperwheel Jouney	280mm
Overall Dimension	120011001100
Weight	1000kg

Aluminum Profile Bending Machine
