Brand Name : | RONGQI |
Model Number : | SQJB-CNC-120-6 |
Certification : | CE |
Price : | NG |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 10 SETS per year |
Delivery Time : | 15 work days |

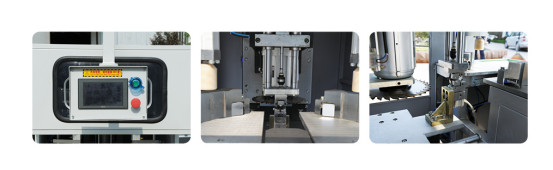

PVC Window Profile CNC Corner Cleaning Machine
Features:
♦ For cleaning PVC profile weeding seam.
♦ Double-axis control system
♦ Cleaning the up/bottom surface and the external corner.
♦ High processing precision due to size error compensation
Function
♦ Can store many programs for various profile processing
Technical Parameters:
Power Supply | 380V 50Hz | |
Total Power | 1.5Kw | |
Operation Air | 0.4~0.7Mpa | |
Principal Axis Rotate Speed | 2800r/min | |
Processing Profile Height | 20-150mm | |
Processing Profile Width | 20-100mm | |
Contour Dimension | 1600X880X1650mm | |
Weight | 600kgs |
![]() |
