    Insulated Glass Making Butyl Extruder

    Insulated Glass Making Butyl Extruder

    Production Description

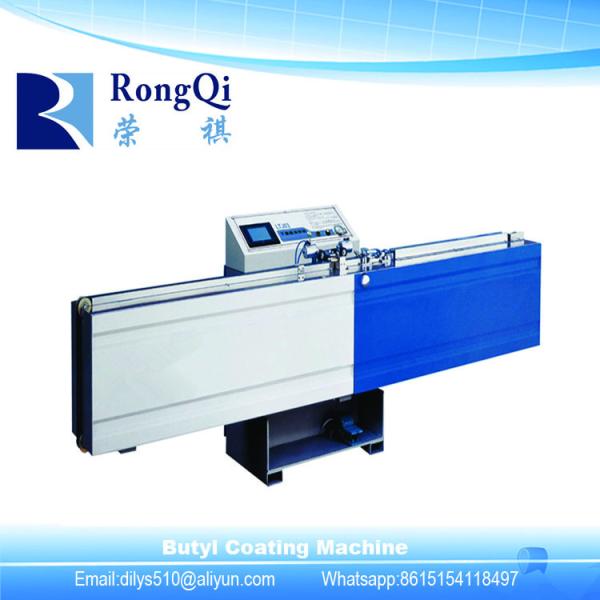

    Production Name: Horizontal Double Glass Butyl Coating Machine

    Features:

    1. PLC control system with touch screen interface

    2. Frequency control system

    3. Pneumatic and Hydraulic supercharging system

    4. Automatic displaying function when out of butyl

    5. Butyl cylinder and nozzle two heating system

    Technical Parameters:

    Model

    LJT06

    Power Supply

    380V 50Hz

    Input Power

    2.9 kw

    Air Pressure

    0.6-0.8 Mpa

    Working Speed

    4-40 m/min

    Squeeze Pressure

    23 Mpa

    Temperature

    90-180 ℃

    Adjustable Range

    3-30 mm

    Outside Dimension

    3000*700*1250 mm

    Insulated Glass Making Butyl ExtruderInsulated Glass Making Butyl ExtruderInsulated Glass Making Butyl ExtruderInsulated Glass Making Butyl Extruder
