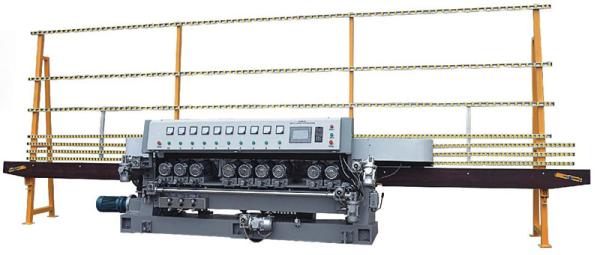

    Automatic Beveled Glass Edge Polishing Machine

    Ask Lasest Price
    Brand Name : RONGQI
    Certification : CE
    Model Number : RQ-BM-10
    Price : NG
    Delivery Time : 35 DAYS
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 50 sets per month
    • Product Details
    • Company Profile

    Automatic Beveled Glass Edge Polishing Machine

    Automatic Beveled Glass Edge Polishing Machine


    RQ-BM-10 glass straight line beveling machine has 10 spindles, able to process glass beveling width on mirror and glass.

    Functions:

    l lProcesses rectilinear glass/mirrors plates in various sizes and thicknesses;

    l lThe grinding (roughing), finishing resin and polishing can be performed simultaneously;

    l lThe same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of production lines hardening processes, rolling processes and other processing.

    Main data:

    Specification

    Date

    Speed range

    0-3.5m/min

    Max.Glass size

    2440x3660mm

    Min. Glass size

    150x150mm

    Glass thickness

    3-12mm

    Beveling width range

    3-35mm

    Beveling angle range

    3°-30°

    Working height

    720mm

    Installed power

    23.5kw

    Voltage/frequency

    220/380/415/480V

    50HZ/60HZ

    Weight

    3200kg

    Overall size

    7000x1400x2600mm


    The position of grinding wheels:

    No.

    Name

    specification

    Quantity

    remark

    1,2

    Diamond wheel

    Φ150

    2


    3

    Diamond wheel

    Φ150

    1

    Pencil edge

    4, 5,6,7

    Resin wheel

    Φ150

    4


    8,9,10

    Felt wheel

    Φ130

    3

    Pneumatic polishing


    Machine specification:

    l Frequency speed adjust

    l Automatic thickness, angle adjustment, beveling width adjustment

    l High speed inducing motor. Speed 2480rppm/min.

    l Synchronous belt

    l Stainless steel water tank

    l Cast steel machine base

    l With one air compressor supplied for the usage of this machine.

    l Pneumatic polishing assistant, polishing with felt wheel and cerium oxide


    l Aluminum glass rack
